BGA153 EMMC5.1 8GB 16GB 32GB 64GB 128GB EMMC IC Memory Chip EMMC4G

Ask Lasest Price
Brand Name :	PG
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	100K a month
Delivery Time :	10 to 15 days

Add to Cart

Product Details
Company Profile

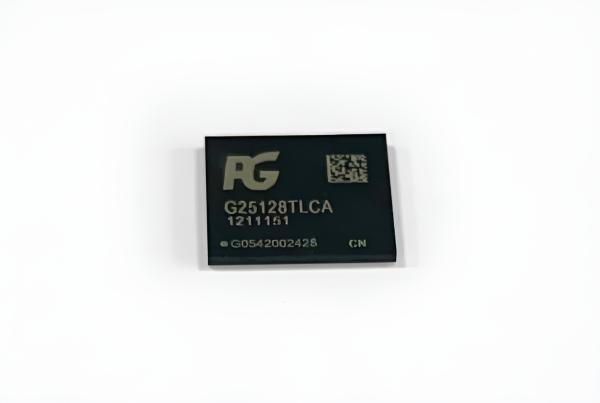

BGA153 EMMC5.1 8GB 16GB 32GB 64GB 128GB EMMC IC Memory Chip EMMC4G

EMMC5.1 Memory Chip 8GB 16GB 32GB 64GB 128GB Emmc Ic BGA153 EMMC4G Flash Memory Ic Chip High Quality

The Gemini series eMMC5.1 is based on high-performance controller LDPC technology , Samsung and KIOXIA BiCS5 3DTLC/YMTC QLC NAND Flash for multi-layer stacking, complying with the HS400 standard. It meets customers' demanding requirements for large capacity, high performance, low power consumption, compatibility, and stability of eMMC in complex and diverse applications.

CA EMMC5.1 Specification

Model	G2564GTLCA	G25128TLCA	G25256TLCA	G25512TLCA
NAND flash	3DTLC NAND	3DTLC NAND	3DTLC NAND	3DTLC NAND
Capacity	64GB	128GB	256GB	512GB
CE	1	2	4	4
Read speed	up to 330MB/s	up to 330MB/s	up to 330MB/s	up to 330MB/s
Write speed	up to 240MB/s	up to 240MB/s	up to 240MB/s	up to 240MB/s
Operating temperature	-25℃~85℃	-25℃~85℃	-25℃~85℃	-25℃~85℃
EP	≥3000	≥3000	≥3000	≥3000
Packaging specification	BGA 153	BGA 153	BGA 153	BGA 153
Size	11.5mmx13mmx1.0mm	11.5mmx13mmx1.0mm	11.5mmx13mmx1.2mm	11.5mmx13mmx1.2mm

Technical details of eMMC chip
Pin definition

The pin definition of the eMMC chip is slightly different from that of a general SIM card or SD card, and needs to be modified appropriately according to the specific hardware device and chip specifications.

PCB design considerations

Power supply and interface: Ensure a stable power supply and ground cable for the eMMC chip.
Layout and routing: The length of the signal line should be matched as far as possible to reduce the delay and distortion of signal transmission.

Advantages of eMMC chips
Suitability for mobile devices

Because of its compact design and high performance, eMMC chips have become the most popular storage units in mobile devices.

Data security and reliability

By integrating controllers and using advanced communication protocols, eMMC chips provide data security and reliability.

In short, eMMC chips play a crucial role in modern mobile devices due to their high efficiency, reliability and easy integration.

WHY CHOOSE US?

1.Strong research and development strength

2. Our factory has advanced packaging and testing technology

3. Complete storage product production line

4. Operating our own brand PG focuses on the storage semiconductor field

5. Possess multiple copyright patents

6. High cost-effectiveness, and competitiveness
