| Ask Lasest Price | |
| Brand Name : | PG |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100K a month |
| Delivery Time : | 10 to 15 days |
Capacity | 64GB / 128 / 256GB / 512GB / 1TB |
Interface | M.2 |
Protocol | SATAIII |
Read and write performance | Maximum continuous reading:540MB/S |
Humidity | 5%~95%(non-condensing) |
Operating temperature | Industrial temperature range(I):-20~70℃ |
EP | ≥3000 |
Operating voltage requirements | 5.0V±5% |
Hardware or software destruction | optional |

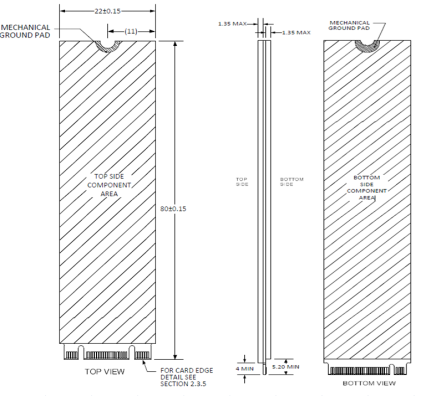

| Physical appearance | Size (mm) | Connector | Input operating voltage |
| 2280 | 2280: 80mmx22mmx3.9mm | M.2 NGFF | 3.3V±5% |
| Product specifications | 1M maximum sequential read(MB/s) | 1M maximum sequential write(MB/s) | 4KB random maximum read(IOPS) | 4KB random maximum write(IOPS) |
| M.2 2280 SATA 128GB SSD | 540 | 480 | 52K | 78K |
| M.2 2280 SATA 256GB SSD | 540 | 480 | 90K | 75K |
M.2 2280 SATA 512GB SSD | 540 | 480 | 89K | 75K |
| M.2 2280 SATA 1TB SSD | 540 | 480 | 94K | 75K |
| M.2 2280 SATA 2TB SSD | 540 | 480 | 95K | 68K |
Features of Industrial Solid State Dirve
The wide temperature adaptability enables it to pass the full temperature range test of -40 ℃~85 ℃,
and maintain stable data reading and writing performance even in
extremely cold environments of Arctic scientific research equipment
or high-temperature conditions near metallurgical furnaces,
avoiding disk dropping or performance degradation caused by
temperature fluctuations.
Stable compatibility covers mainstream systems such as Windows and Linux, as well as
industrial grade main control platforms. It can quickly adapt to
scenarios such as industrial computers and aerospace equipment
without the need for additional drivers, reducing the cost of
technical adaptation in multi system environments.
7 × 24-hour continuous operation, suitable for long-term high load scenarios such as data centers
and automated production lines.
Application of Industrial Grade M.2 SATA SSD
|
|
